Phoenix Safe Company

Battery Fighter BS0440

Entry-level lithium-ion battery storage designed for smaller capacity requirements while maintaining high levels of protection.

Make an Enquiry
Phoenix Safe Company
Three battery storage safes labeled BS0441E, BS0441F, and BS0441K, each with different locking mechanisms: a keypad, a digital touchscreen, and a key lock.

Battery Fighter BS0440

The BS0440 Series has been designed for use in domestic and commercial environments for the safe storage and charging of Lithium-Ion batteries. Rechargeable batteries presentmany risks including thermal runaway caused by a rise in temperature, impact damage or faulty manufacture. This can result in the battery igniting and causing a fire explosion that can be extremely difficult to extinguish and cause major damage to life and buildings.

Suitable for the storage and charging of the following battery types – power tools, garden tools,e-bikes/scooters, drones, laptop, mobile phone, plus your standard household rechargeable batteries AAA, AA, Type C, Type D, 9V.

Contact Us

Available Sizes & Configurations

Each unit is available in a range of sizes and configurations to suit different storage capacities and operational requirements. Select a model below to view its format and suitability.

Three battery storage safes labeled BS0441E, BS0441F, and BS0441K, each with different locking mechanisms: a keypad, a digital touchscreen, and a key lock.

BS0441

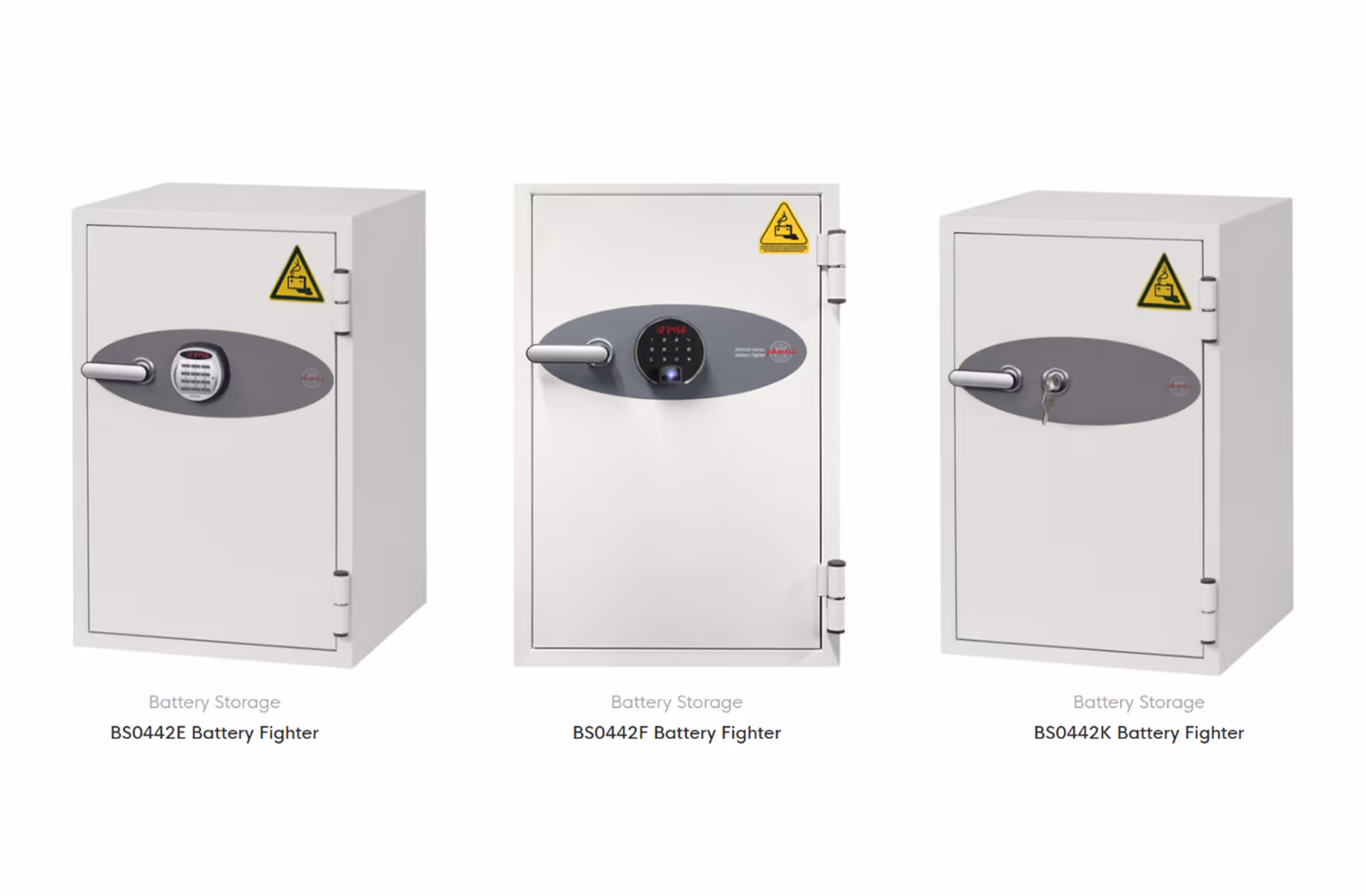

Three gray and white battery storage safes labeled BS0442E, BS0442F, and BS0442K with different locking mechanisms including keypad, fingerprint, and key lock.

BS0442

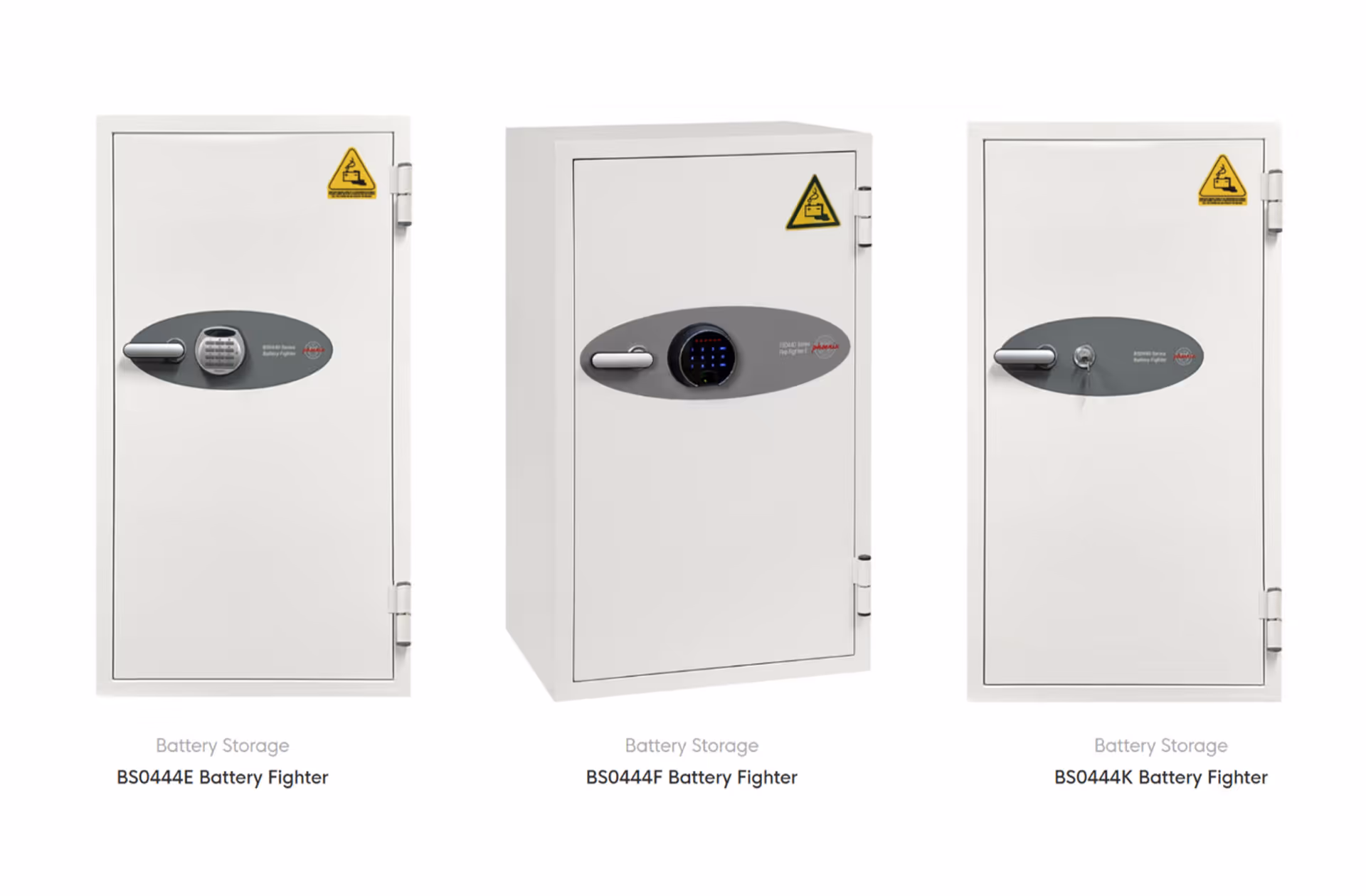

Three white Battery Fighter storage cabinets with different locking mechanisms: electronic keypad, digital touchpad, and key lock.

BS0444

Details & Dimensions
Resources

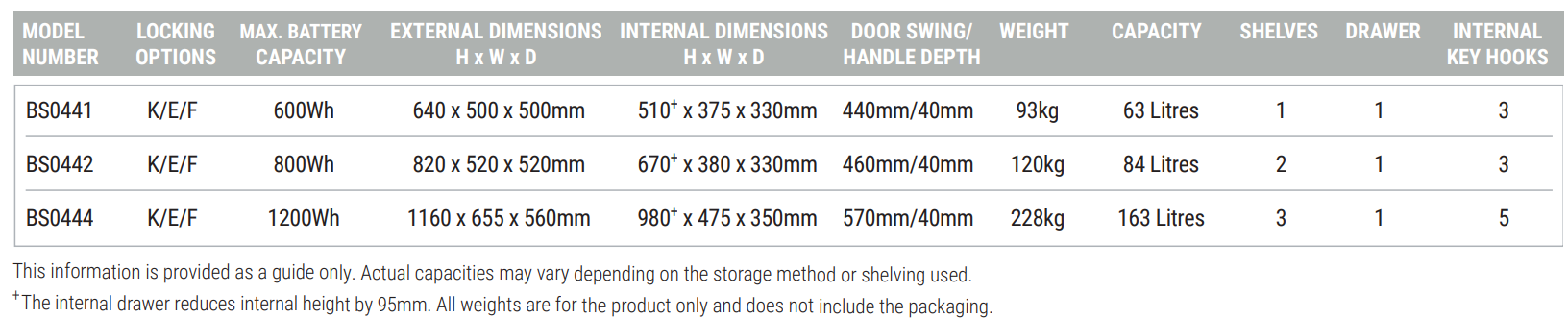

Table listing model numbers BS0441, BS0442, and BS0444 with locking options, max battery capacities from 600Wh to 1200Wh, external and internal dimensions in mm, door swing and handle depth in mm, weight in kg, capacity in litres, number of shelves, drawers, and internal key hooks.
Download BS0440 Datasheet
HOW MANY BATTERIES CAN I CHARGE?

Depends on size of battery. Wattage up to 3000W per circuit or 13A per circuit. Draw rate can’t becalculated due to fluctuations in draw. Use a peak flow meter to determine.

HOW CAN I CHARGE MORE BATTERIES?

Upgrade number of charging circuits. Easier in non-certified safes or upgrade to 3 phase.

CAN I MONITOR THE CONDITION OF THE SAFE?

Yes, use Easthouse safe monitor.

IS THIS PART OF YOUR INSTALLATION?

No.

HOW MANY BATTERIES CAN I STORE?

Certified rates are tested in Wh or kWh. Uncertified are best guess. Don’t forget physical size andshelf load limits.

DO I NEED SUPPRESSION?

Certified safes are tested with the suppression systems fitted but deactivated, therefore they playno part in the test, the cabinet must withstand the test without them. Part of the test standardrequires all batteries inside to ignite. Any batteries that don’t are removed from the total capacity.They may however reduce the overall effect of any combustion and even prevent other batteriesfrom ignition. They do take up space.

CAN I CONNECT MY CABINET TO THE BUILDING ALARM SYSTEM?

Only if a control system is fitted to the safe. We have had 3 versions.

CAN THE CABINETS BE ADAPTED FOR FORCED OR FILTERED VENTILATION?

Yes, an extra connection can be made in the base of the cabinet within the certification rules.

Can’t find the answer you’re looking for? Please chat to our friendly team.
